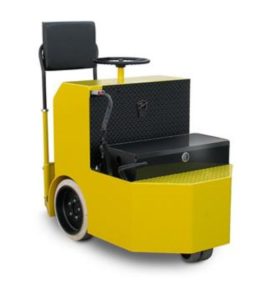

E-451 Taylor-Dunn
Chassis: Battery: |
Type: LESS INDUSTRIAL BATTERY COMPARTMENT 13-3/8″ L x 30-1/2″ W x 24″ H System Voltage: 24 Charger: Optional |
Chassis: Brakes: |
Rear: Mechanical brake band/drum at differential Front: N/A Parking: Foot |
Chassis: Frame Construction: |
Steel unitized body with heavy duty smooth 3/8 inch steel plate |
Chassis: Powertrain: |
Type: Electric Power: Optional Transmission: Transaxle Assembly, Sealed Silent Chain Primary Reduction to Hypoid Ring and Pinion Gears Drive: Controller: Series |
Chassis: Steering: |
Manual, Chain Linkage, Front Fork |
Chassis: Suspension: |
Rear: Solid Front: Solid |
Chassis: Tires: |
Rear: 16 x 4 x 12 1/8″ solid cusion Front: 8 x 2 1/2 inch Solid Cushion, Dual |
Dimensions: Deck: |
Width: N/A Length: N/A Height: N/A |
Dimensions: Height: |
Less Cab: N/A With Cab: N/A |
Dimensions: Hitch Height: |
12″ (30.5cm) |
Dimensions: Length: |
56″ (147 cm) |
Dimensions: Outside Turning Radius: |
49″ (124.5cm) |
Dimensions: Weight: |
975 lbs. (443 kg) Less charger and batteries |
Dimensions: Wheel Base: |
30.5″ (77.5cm) |
Dimensions: Width: |
31.75″ (80 cm) |
Interior: Instrumentation: |
Forward/reverse selector, key switch, electric horn |
Interior: Seats: |
Driver: Passenger: |
Performance: Passengers: |
1 |
Performance: Range: |
18 miles (29 km) |
Performance: Speed: |
6 mph (9.6 km/h) |
Performance: Tow Capacity: |
DBP: 200 lbs. Towing Capacity: 10,000 lbs. (4,536 KG) |
Details
The model E-451 features our exclusive “Power Traction” drive, which incorporates a DC series wound motor attached to a 30:1 automotive differential in an oil bath. Along with a 24 volt electrical system equipped with a solid state 400 amp speed controller, the E-451 is sure to provide powerful and reliable service for years to come.
In addition to standard turning radius of 49”, the E-451 is designed with an adjustable padded back rest and safety rails, as well as an integrated foot-operated accelerator and brake with safety inter-lock.
These design in features, along with solid cushion tires and large dual drive wheels, provide a safe and maneuverable ride.
