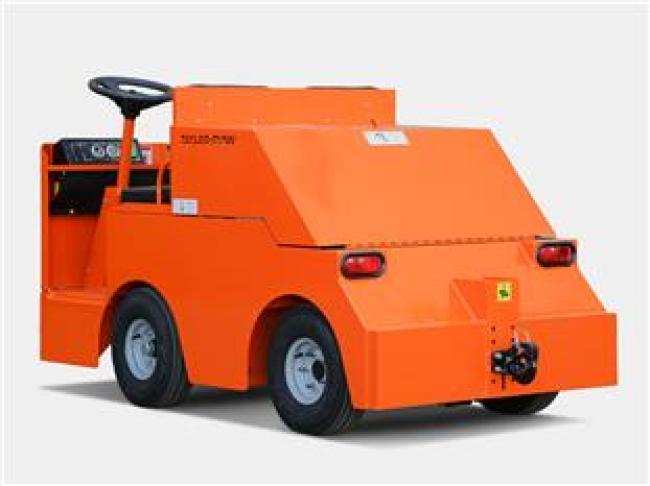

C-420 Taylor-Dunn
Chassis: Battery: |
Type: LESS INDUSTRIAL BATTERY COMPARTMENT 19-3/4″ L x 43-1/2″ W x 23″ H System Voltage: 36 Charger: Optional |
Chassis: Brakes: |
Rear: Hydraulic discs Front: Hydraulic disc Parking: Hand |
Chassis: Frame Construction: |
Steel unitized body with heavy duty smooth 1/4 inch panels |
Chassis: Powertrain: |
Type: Electric Power: Optional Transmission: Transaxle Assembly, Sealed Silent Chain Primary Reduction to Hypoid Ring and Pinion Gears Drive: Automotive Differential Controller: Solid State |
Chassis: Steering: |
Automotive Type, 24:1 |
Chassis: Suspension: |
Rear: Leaf springs Front: Leaf springs |
Chassis: Tires: |
Rear: 5.70 x 8 Front: 5.70 x 8 Load Range C |
Dimensions: Deck: |
Width: N/A Length: N/A Height: N/A |
Dimensions: Height: |
Less Cab: 49.5″ (125 cm) With Cab: 75″ (190 cm) |
Dimensions: Hitch Height: |
11″ (27.9cm) |
Dimensions: Length: |
84.5″ (215 cm) |
Dimensions: Outside Turning Radius: |
100″ (253.8cm) |
Dimensions: Weight: |
2,000 lbs. (907 kg.) Less charger and batteries |
Dimensions: Wheel Base: |
36.5″ (92.7cm) |
Dimensions: Width: |
44.25″ (112 cm) |
Interior: Instrumentation: |
Battery status indicator, forward/reverse selector, key switch, electric horn |
Interior: Seats: |
Driver: Black Vinyl, Interlock Switch Passenger: Black Vinyl |
Performance: Passengers: |
2 |
Performance: Range: |
20 miles (32 km) |
Performance: Speed: |
8 mph (12.8 km/h) |
Performance: Tow Capacity: |
DBP: 400 – 2,000 lbs. Towing Capacity: 20,000 lbs. (9,090 kg) |
Details
The C-420’s ruggedness begins with its all welded steel construction incorporating 1/4” thick panels riding on a leaf spring suspension. The power traction, oil bath chain, transmission with automotive differential, standard 4-wheel hydraulic brakes, and pneumatic tires make sure the C-420 will start, stop, and ride with ease.
Equipped with DC Series wound motors, solid state speed controllers and accelerator modules, the C-420 offers reliability and value in a tractor that can tow up to 20,000 lbs. at speeds of 8 mph.
Maneuverability is achieved with a compact design incorporating a short wheel base and a 24:1 gear reduced automotive steering system, which allows for operation within tight quarters.
