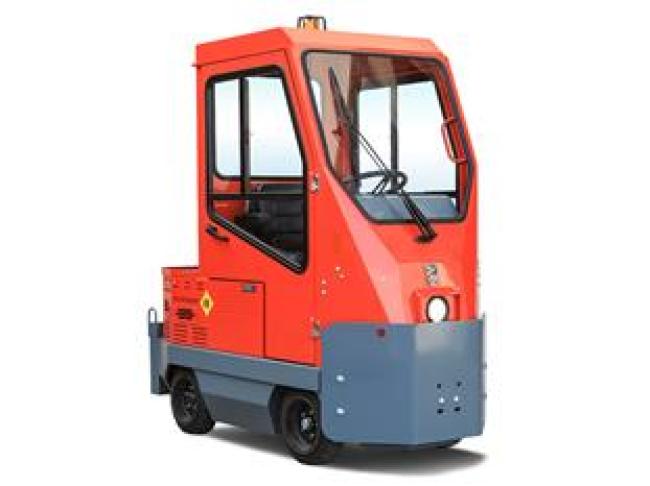

C-426 AC EE Taylor-Dunn

Chassis: Battery:
Type: LESS INDUSTRIAL BATTERY, compartment size: 32″ L x 18.5″ W x 22.75″ H, side extract System Voltage: 48 Charger: Less Charger
Chassis: Brakes:
Rear: Hydraulic Disc Front: Hydraulic disc Parking: Automatic
Chassis: Frame Construction:
Fully welded, unitized, 10 gauge steel body, 3/16″ steel chassis with .5 in thick steel, full perimeter steel plate protection, rear traction weight
Chassis: Powertrain:
Type: Electric Power: Transmission: Transaxle Assembly, Sealed Helical Gear Primary Reduction to Hypoid Ring and Pinion Gears Drive: GT Drive, Automotive Differential Controller: 500 amp, self diagnostic, AC speed controller with integrated thermal protection and safety monitoring
Chassis: Steering:
Manual, Re-circulating Ball
Chassis: Suspension:
Rear: Coil springs with shock absorbers Front: Coil springs with shock absorbers
Chassis: Tires:
Rear: 4.00 x 8, soft solid, traction tread Front: 4.00 x 8., soft solid, traction tread
Dimensions: Deck:
Width: Length: Height:
Dimensions: Height:
Less Cab: 54 in (137 cm) With Cab: 82.5 in ( 209 cm)
Dimensions: Length:
93.5 in (237 cm)
Dimensions: Outside Turning Radius:
74.5 (189 cm)
Dimensions: Weight:
2,700 lb (1225 kg)
Dimensions: Wheel Base:
43 in (109 cm)
Dimensions: Width:
39 in (99 cm)
Interior: Instrumentation:
Smart View Display ( battery status indicator, hour meter, fault code display) forward/reverse selector, key switch, electric horn, reverse buzzer, DC/DC converter, power cut-off switch, manual inching
Interior: Seats:
Driver: Adjustable, Black vinyl with spring suspension and electric interlock switch Passenger:
Performance: Passengers:
1
Performance: Range:
30 Miles (48 km)
Performance: Speed:
10 mph (16 km/h)
Performance: Tow Capacity:
30,000 lb (13,610 kg)
Details

Additional features include manual inching, secured battery compartment with latch and lockable door, and electrical components (controller, contactor, fuses, and DC/DC converter) all in a sealed enclosure.

Equipment Type
Industrial Carts / Electric & Gas Tow Tractors & Trailers
