ET-3000 Taylor-Dunn
Chassis: Battery: |
Type: Eight, 6V, 225 amp hour (lead acid) System Voltage: 48 Charger: Built-In |
Chassis: Brakes: |
Rear: Hydraulic disc brakes Front: Hydraulic disc brakes Parking: Hand Operated |
Chassis: Frame Construction: |
Steel unitized body with heavy duty 14 gauge smooth plate |
Chassis: Powertrain: |
Type: Electric Power: 110/220V, 50/60Hz Transmission: Transaxle Assembly, Sealed Helical Gear Primary Reduction to Hypoid Ring and Pinion Gears Drive: Controller: SEM |
Chassis: Steering: |
Automotive steering 24:1 |
Chassis: Suspension: |
Rear: Leaf springs, shock absorbers, overload coil springs Front: Leaf springs with Shock Absorbers |
Chassis: Tires: |
Rear: 20.5 x 8 x 10 Load Range E, Pneumatic Front: 20.5 x 8 x 10 Load Range E, Pneumatic |
Dimensions: Deck: |
Width: 49″ (124.0 cm) Length: 77.62″ (197.0 cm) Height: 29.25″ (74.0 cm) |
Dimensions: Height: |
Less Cab: N/A With Cab: 74″ (188 cm) |
Dimensions: Hitch Height: |
16.5″ (42.0 cm) |
Dimensions: Length: |
131″ (333 cm) |
Dimensions: Outside Turning Radius: |
145″ (368.0 cm) |
Dimensions: Weight: |
2,475 lbs (1123 kg) |
Dimensions: Wheel Base: |
51.25″ (130 cm) |
Dimensions: Width: |
51″ (129 cm) |
Interior: Instrumentation: |

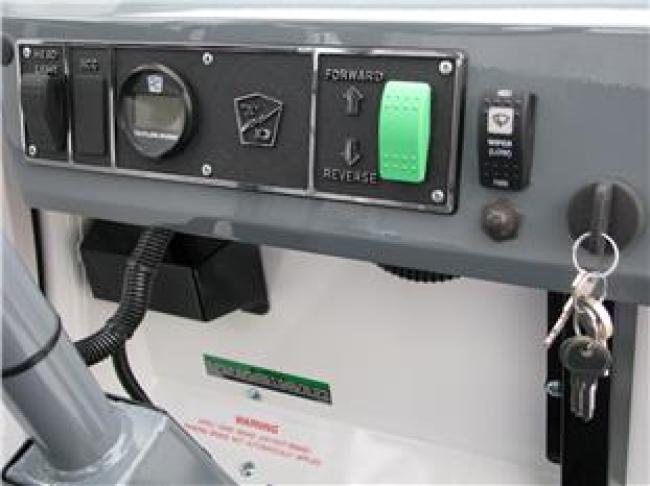

Smart View Display (Battery status indicator, hour meter, fault code display), reverse buzzer, forward/reverse selector, key switch, electric horn, windshield wiper, mirrors, headlight switch, DC/DC Converter |
Interior: Seats: |

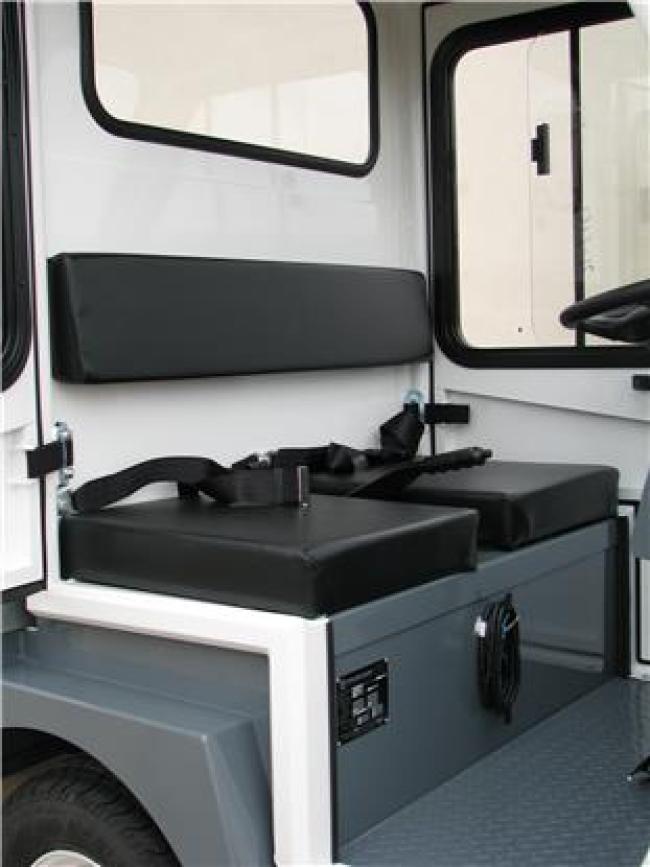

Driver: Split seat cushion with full length back rest in black vinyl, seat belt Passenger: Seat Cushion, Full Back Rest, Black Vinyl, Seat Belt |
Performance: Load Capacity: |
3,000 lbs (1361 kg) |
Performance: Passengers: |
2 |
Performance: Range: |
30 Miles (48 km) |
Performance: Speed: |
18 mph (29 km/h) |
Performance: Tow Capacity: |
10,000 lbs (4,536 kg) |
Details
This vehicle operates at 18 mph and carries loads up to 3,000 lbs. Specifically designed to meet rugged outdoor applications, the ET-3000 is equipped with a 48 volt drive train and travels up to 30 miles in a single charge.
Taylor-Dunn’s GT Drive system provides hill climbing ability and acceleration while carrying heavy cargo during daily applications.
Standard features include, steel cab and doors, load range E tires, durable frame design, four-wheel hydraulic brakes and motor design that ensures reliability and low maintenance cost.
