Taylor Dunn Bigfoot® 3000 Taylor-Dunn
Chassis: Battery: |
Type: Eight, 260 amp-hour, 6 volt T145 System Voltage: 48V Charger: Built-in, 48V, 115 VAC/60Hz, 1 kW w/ interlock, 17 Amp SCR |
Chassis: Brakes: |
Rear: Hydraulic Disc Front: Hydraulic disc Parking: Electric |
Chassis: Frame Construction: |
12 Gauge, Smooth Skin, Unitized, Fully Welded, Steel |
Chassis: Powertrain: |
Type: Electric Power: 115 VAC, 60 Hz Transmission: Drive: Helical Gear, Oil Bath Transaxle, GT Automotive Differential Controller: Solid State Self Diagnostic AC Speed Controller |
Chassis: Steering: |
Rack and Pinion |
Chassis: Suspension: |
Rear: Multi-leaf Springs Front: Multi-leaf springs |
Chassis: Tires: |
Rear: 20.5 x 8 x 10, Load Range E, Pneumatic Front: 20.5 x 8 x 10 Load Range E, Pneumatic |
Dimensions: Deck: |
Width: 48 in (122 cm) Length: 74 in (188 cm) Height: 27.5 in (70 cm) |
Dimensions: Height: |
Less Cab: 74 in (188 cm) With Cab: |
Dimensions: Hitch Height: |
12.5 in (32 cm) |
Dimensions: Length: |
135 in (343 cm) |
Dimensions: Outside Turning Radius: |
145 in (368 cm) |
Dimensions: Weight: |
2,265 lb (1027 kg) |
Dimensions: Wheel Base: |
62 in (157 cm) |
Dimensions: Width: |
57 in (145 cm) |
Interior: Instrumentation: |
Clear View Display (speed, distance, battery status, hours, input diagnostics, and fault code display), Dual USB Port, Emergency Cut-off Switch, Light Switch, Forward/Off/Reverse Selector, Reverse Buzzer, High/Low Speed Switch, Key Switch, DC/DC Converter (on with key switch) and Electric Horn |
Interior: Seats: |
Driver: Black adjustable bucket seat, electrical interlock Passenger: Black Adjustable Bucket Seat |
Performance: Load Capacity: |
3,000 lb (1,360 kg) |
Performance: Passengers: |
2 |
Performance: Range: |
40 miles (64 km) |
Performance: Speed: |
18 mph (29 km/h) |
Performance: Tow Capacity: |
10,000 lb (4535 kg) |
Details

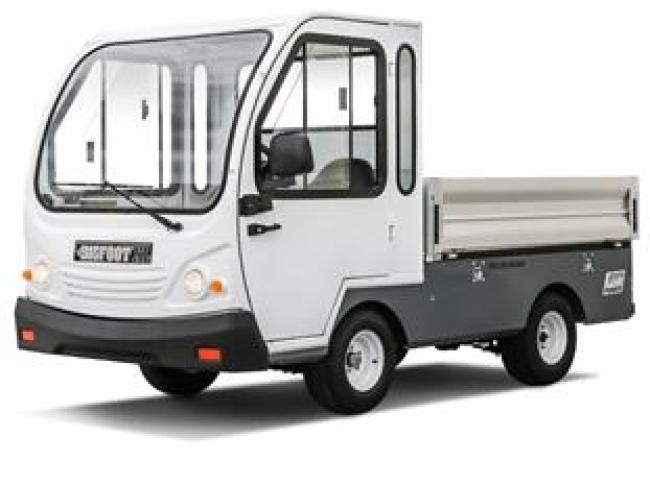

Equipped with a 48 volt AC motor, our GT drive and rack and pinion steering, this Taylor Dunn Bigfoot 3000 electric cart travels at 18 mph with a distance up to 40 miles.
Standard features include deluxe cab, load range E tires, durable frame design, 4-wheel hydraulic brakes and heavy-duty drive train that ensures reliability and low maintenance costs.
- Equipment Type
- Industrial Carts / Electric Utility Vehicles & Trucks
