ET-150 72V Taylor-Dunn
Chassis: Battery: |
Type: Twelve 250 amp hr., 6 volt (lead acid) System Voltage: 72 Charger: Built-In |
Chassis: Brakes: |
Rear: Hydraulic drum brakes Front: Hydraulic disc Parking: Hand |
Chassis: Frame Construction: |
Steel unitized tubular chassis |
Chassis: Powertrain: |
Type: Electric Power: 230V/60Hz Transmission: Transaxle Assembly, Sealed Silent Chain Primary Reduction to Hypoid Ring and Pinion Gears Drive: Controller: Series |
Chassis: Steering: |
Manual, Re-circulating Ball |
Chassis: Suspension: |
Rear: Leaf springs, shock absorbers Front: Leaf springs |
Chassis: Tires: |
Rear: P195/75R14 pneumatic Front: P195/75R14 Pneumatic |
Dimensions: Deck: |
Width: 62″ (157.5cm) Length: 85″ (223.5cm) Height: 32.28″ (82.0cm) |
Dimensions: Height: |
Less Cab: N/A With Cab: 76″ (193 cm) |
Dimensions: Hitch Height: |
22.5″ (57.1cm) |
Dimensions: Length: |
167″ (424 cm) |
Dimensions: Outside Turning Radius: |
210″ (534.0cm) |
Dimensions: Weight: |
2,700 lbs (1,227 kg) |
Dimensions: Wheel Base: |
102″ (259.1cm) |
Dimensions: Width: |
62″ (157 cm) |
Interior: Instrumentation: |
Battery status indicator, speedometer, odometer, forward/reverse selector, key switch, emergency disconnect switch, electric horn, DC/DC Converter |
Interior: Seats: |
Driver: Passenger: |
Performance: Load Capacity: |
1,500 lbs. (680 kg) |
Performance: Passengers: |
2 |
Performance: Range: |
40 miles (64 km) |
Performance: Speed: |
25 mph (40.2 km/h) |
Performance: Tow Capacity: |
7,500 lbs (3,400 kg) |
Details
Powered by an electric drive train, the ET-150 72V Taylor Dunn truck can reach speeds of up to 25 mph, while providing over 40 miles in range. Full-size deck provides over 147 cu. ft. of cargo space to carry loads up to 1,500 pounds.

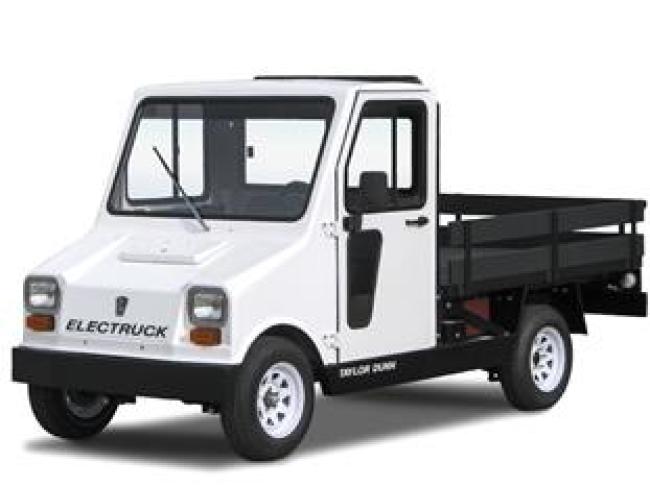

The Electruck, like all Taylor-Dunn vehicles, can be customized with cargo boxes, tool cabinets, ladder racks, etc., to meet your specific application needs.
- Equipment Type
- Industrial Carts / Electric Utility Vehicles & Trucks
