SC-100 36V Taylor-Dunn
Chassis: Battery: |
Type: Six 217 amp hr., 6 volt (lead acid) System Voltage: 36 Charger: Built-In |
Chassis: Brakes: |
Rear: Hydraulic disc Front: N/A Parking: Hand |
Chassis: Frame Construction: |
Steel unitized body, heavy duty 16 gauge diamond plate |
Chassis: Powertrain: |
Type: Electric Power: 110/220V, 50/60Hz Transmission: Transaxle Assembly, Sealed Helical Gear Primary Reduction to Hypoid Ring and Pinion Gears Drive: Controller: SEM |
Chassis: Steering: |
Manual, Chain Linkage, Front Fork |
Chassis: Suspension: |
Rear: Solid mounted rear axle Front: Solid |
Chassis: Tires: |
Rear: 4.80 x 8 pneumatic Front: 4.80 x 8 Load Range B, Pneumatic |
Dimensions: Deck: |
Width: 29.5″ (75.2cm) Length: 58.5″ (148.9cm) Height: 25″ (63.5cm) |
Dimensions: Height: |
Less Cab: 48.25″ (122 cm) With Cab: N/A |
Dimensions: Hitch Height: |
12″ (30.5cm) |
Dimensions: Length: |
85.75″ (217 cm) |
Dimensions: Outside Turning Radius: |
67″ (170.0cm) |
Dimensions: Weight: |
1,095 lbs (497 kg.) |
Dimensions: Wheel Base: |
47.25″ (119.9cm) |
Dimensions: Width: |
29.5″ (75 cm) |
Interior: Instrumentation: |
Smart View Display (Battery status indicator, hour meter, system status monitor, speedometer), reverse buzzer, forward/reverse selector, key switch, electric horn, DC/DC Converter |
Interior: Seats: |
Driver: Passenger: |
Performance: Load Capacity: |
1,000 lbs. (450 Kg.) |
Performance: Passengers: |
1 |
Performance: Range: |
30 Miles (48 km) |
Performance: Speed: |
8 mph (12.9 km/h) |
Performance: Tow Capacity: |
5,000 lbs. (2,273 kg) |
Details

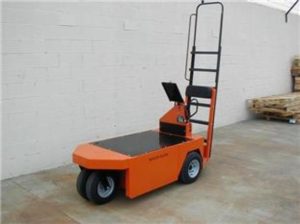

The SC-100 36V is designed with an all steel unitized body with automotive differential and 36 volt GT drive system, providing years of service in rugged applications. Equipped with 4, 5 or 6 step ladder, the SC-100 36V allows the operator to pick materials from higher stock locations.
Options like multilevel shelving, clipboard, automotive steering wheel or extended deck overlay provide maximum functionality for your operation.
The SC-100 36V configured with roll out or lift out battery box can provide 24 hours of service in any warehousing application.
- Equipment Type
- Industrial Carts / Stockchasers, Parts Pickers & Expediters
