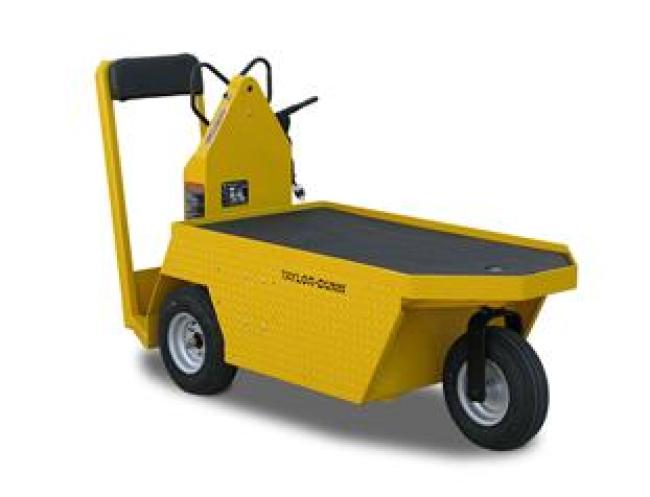

SC-090 24V Taylor-Dunn
Chassis: Battery: |
Type: Four 217 amp hr., 6 volt (lead acid) System Voltage: 24 Charger: Built-In |
Chassis: Brakes: |
Rear: Two wheel mechanical drum Front: N/A Parking: Hand |
Chassis: Frame Construction: |
Steel unitized body, heavy duty 16 gauge diamond plate |
Chassis: Powertrain: |
Type: Electric Power: 110/220V, 50/60Hz Transmission: Transaxle Assembly, Sealed Helical Gear Reduction Drive: Controller: Series |
Chassis: Steering: |
Manual, Chain Linkage, Front Fork |
Chassis: Suspension: |
Rear: Solid mounted rear axle Front: Solid |
Chassis: Tires: |
Rear: 4.80 x 8 pneumatic Front: 4.80 x 8 Load Range B, Pneumatic |
Dimensions: Deck: |
Width: 29.5″ (75.2cm) Length: 58.5″ (148.9cm) Height: 25″ (63.5cm) |
Dimensions: Height: |
Less Cab: 48.25″ (122 cm) With Cab: N/A |
Dimensions: Hitch Height: |
12″ (30.5cm) |
Dimensions: Length: |
85.75″ (217 cm) |
Dimensions: Outside Turning Radius: |
67″ (170.0cm) |
Dimensions: Weight: |
760 lbs (345 kg.) |
Dimensions: Wheel Base: |
47.25″ (119.9cm) |
Dimensions: Width: |
29.5″ (75 cm) |
Interior: Instrumentation: |
Battery status indicator, forward/reverse selector, key switch, electric horn |
Interior: Seats: |
Driver: Passenger: |
Performance: Load Capacity: |
900 lbs. (400 Kg.) |
Performance: Passengers: |
1 |
Performance: Range: |
20 miles (32 km) |
Performance: Speed: |
9 mph (14.5 km/h) |
Performance: Tow Capacity: |
2,000 lbs. (909 kg) |
Details
The SC-090 24V is designed with an all steel unitized body, automotive differential and 24 volt Direct Gear Drive system, providing years of service in rugged applications.
Options like multi-level shelving, clipboard, automotive steering wheel, or extended deck overlay provide maximum functionality for your operation.
