R-380 36V GT Taylor-Dunn
Chassis: Battery: |
Type: Six 217 amp hr., 6 volt (lead acid) System Voltage: 36 Charger: Built-In |
Chassis: Brakes: |
Rear: Hydraulic disc brakes Front: N/A Parking: Hand |
Chassis: Frame Construction: |
Steel unitized body, heavy duty 16 gauge diamond plate |
Chassis: Powertrain: |
Type: Electric Power: 110/220V, 50/60Hz Transmission: Transaxle Assembly, Sealed Helical Gear Primary Reduction to Hypoid Ring and Pinion Gears Drive: Controller: SEM |
Chassis: Steering: |
Manual, Re-circulating Ball |
Chassis: Suspension: |
Rear: Leaf springs Front: Leaf springs |
Chassis: Tires: |
Rear: 5.70 x 8 pneumatic Front: 5.70 x 8 Load Range C, Pneumatic |
Dimensions: Deck: |
Width: 41.5″ (105.4cm) Length: 32″ (81.3cm) Height: 25″ (63.5cm) |
Dimensions: Height: |
Less Cab: 45.5″ (115 cm) With Cab: 69″ (175 cm) |
Dimensions: Hitch Height: |
13″ (33.0cm) |
Dimensions: Length: |
99.5″ (352 cm) |
Dimensions: Outside Turning Radius: |
112″ (284.3cm) |
Dimensions: Weight: |
1,195 lbS (542 kG) |
Dimensions: Wheel Base: |
63.5″ (161.3cm) |
Dimensions: Width: |
44″ (112 cm) |
Interior: Instrumentation: |
Smart View Display (Battery status indicator, hour meter, system status monitor), reverse buzzer, forward/reverse selector, key switch, electric horn, DC/DC Converter |
Interior: Seats: |
Driver: Passenger: |
Performance: Load Capacity: |
1,150 lbs. (522 KG) |
Performance: Passengers: |
2 |
Performance: Range: |
26 miles (42 km) |
Performance: Speed: |
11 mph (17.7 km/h) |
Performance: Tow Capacity: |
5,000 lbs. (2,273 kg) |
Details

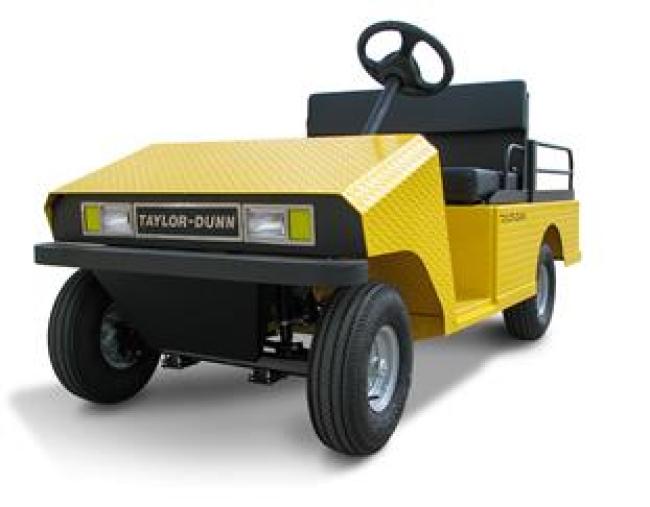

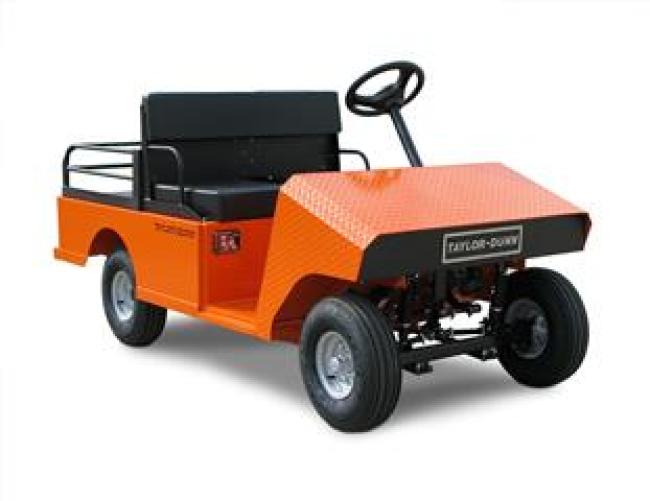

The Taylor Dunn R-380 36V GT is equipped with a 36 volt drive train that provides speeds up to 12 mph. Equipped standard with automatic charger, solid state speed controller, safety seat switch and 6 hp DC motor, the R-380 36V is the best value in its class of vehicles.
Configured with fold down 4 passenger seating, the R-380 36V GT can be used as a personnel or burden carrier during daily operations. Equipped with factory-installed steel cabin and doors, this vehicle ideal for both indoor and outdoor applications.
