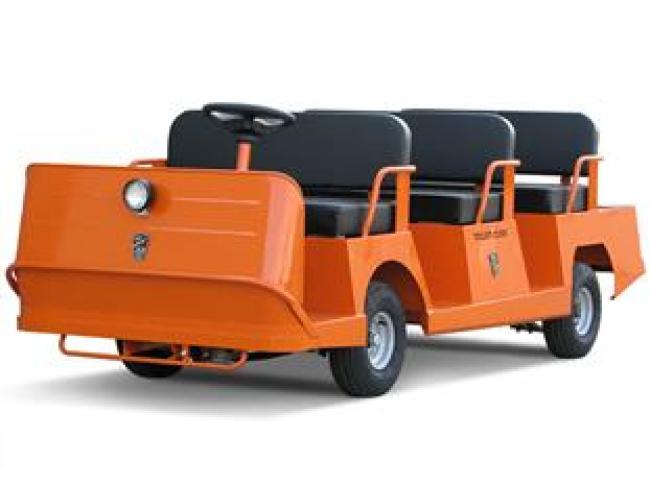

BT-280 48V AC Taylor-Dunn

Chassis: Battery:
Type: Eight 250 amp hr., 6 volt (lead acid) System Voltage: 48 Charger: Built-in
Chassis: Brakes:
Rear: Hydraulic disc Front: Hydraulic disc Parking: Hand
Chassis: Frame Construction:
Steel unitized tubular chassis
Chassis: Powertrain:
Type: Electric Power: 110/220V, 50/60Hz Transmission: Transaxle Assembly, Sealed Helical Gear Primary Reduction to Hypoid Ring and Pinion Gears Drive: Controller: AC
Chassis: Steering:
Manual, Re-circulating Ball
Chassis: Suspension:
Rear: Leaf springs w/dual rear shocks Front: Leaf springs
Chassis: Tires:
Rear: 5.70 x 8 pneumatic Front: 5.70 x 8 Load Range C, Pneumatic
Dimensions: Deck:
Width: N/A Length: N/A Height: N/A
Dimensions: Height:
Less Cab: 44″ (112 cm) With Cab: N/A
Dimensions: Hitch Height:
12.5″ (31.8cm)
Dimensions: Length:
136.7″ (348 cm)
Dimensions: Outside Turning Radius:
160″ (411cm)
Dimensions: Weight:
1,905 lbs. (648 KG)
Dimensions: Wheel Base:
78″ (198cm)
Dimensions: Width:
50″ (127 cm)
Interior: Instrumentation:
Combination Display (Battery status indicator, hour meter, system status monitor, speedometer), reverse buzzer, forward/reverse selector, key switch, emergency disconnect switch, brake bypass switch, electric horn
Interior: Seats:
Driver: Passenger:
Performance: Load Capacity:
3,000 lbs. (1,360 kg.)
Performance: Passengers:
Performance: Range:
24 Miles (38 km)
Performance: Speed:
11 mph (17.7 km/h)
Performance: Tow Capacity:
12,500 lbs. (5,682 kg)

Equipped with a 48 volt GT drive train, the E-Tram can travel up to 11 mph for a range up to 24 miles on a single charge.

Low step height and increased visibility while traveling at low speeds in congested areas make the E-Tram an ideal solution for your personnel moving applications.

Low noise and zero pollution accompanied with low operating and maintenance costs make the E-Tram the most cost effective solution when compared to its gasoline alternatives.

Equipment Type
Industrial Carts / Personnel Carriers, Scooters & Carts
