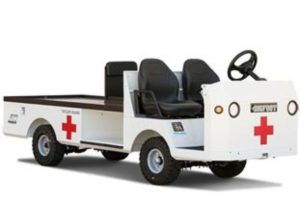

Taylor Dunn BIGFOOT® 48V Taylor-Dunn
Chassis: Battery: |
Type: Type: 210 Amp Hour, T605, 8 each, 6 volt System Voltage: 48V Charger: Built In, 48V, 115 VAC / 60 Hz, 1kW w/ Interlock, 17 Amp SCR |
Chassis: Brakes: |
Rear: Hydraulic Disc Front: Parking: Y |
Chassis: Frame Construction: |
12 Gauge, Smooth Skin, Unitized, Fully Welded, Steel |
Chassis: Powertrain: |
Type: Electric Power: 115 VAC, 60 Hz Transmission: Helical Gear, Oil Bath Transaxle, GT Automotive Differential Drive: Controller: Solid State Self Diagnostic AC Speed Controller |
Chassis: Steering: |
Rack and Pinion |
Chassis: Suspension: |
Rear: Multi-Leaf Springs Front: Multi-Leaf Springs |
Chassis: Tires: |
Rear: 5.7 x 8, Load Range C, Pneumatic Front: 5.7 x 8, Load Range C, Pneumatic |
Dimensions: Deck: |
Width: 44″ (1117 mm) Length: 77″ (1955 mm) Height: 27.5″ (698 mm) |
Dimensions: Height: |
Less Cab: 51.5″ (131 cm) With Cab: 73″ (1854 mm) |
Dimensions: Length: |
130.5″ (331 cm) |
Dimensions: Outside Turning Radius: |
137″ (3480 mm) |
Dimensions: Weight: |
1,565 lbs (710 kg.) |
Dimensions: Wheel Base: |
62″ (1574 mm) |
Dimensions: Width: |
44″ (112 cm) |
Interior: Instrumentation: |
Smart View Display, Reverse Buzzer, Forward / Off / Reverse Selector, Key Switch, Light Switch, High / Low Speed Switch, Electric Horn, Emergency Power Cut-off Switch, USB Port, DC/DC Converter |
Interior: Seats: |
Driver: Black Adjustable Bucket Seat, Driver’s Seat Electrical Interlock Passenger: Black Adjustable Bucket Seat |
Performance: Load Capacity: |
3,000 lbs (1361 kg) |
Performance: Passengers: |
2 |
Performance: Range: |
40 Miles (64 km) |
Performance: Speed: |
12 mph (19.3 km/h) |
Performance: Tow Capacity: |
7,500 lbs (3402 kg) |
Details
Additional standard features of the Taylor Dunn BIGFOOT cart include our GT Drive system, 48 volt AC power, hydraulic disc brakes, regenerative braking, Smart View display, recessed tie-downs, 12 gauge smooth skin, unitized steel body, LED lighting, cupholders, and a heavy duty all gear drive train that ensures reliability and low maintenance costs. This Taylor Dunn BIGFOOT can be configured to tow 17,500 pounds.
