B-248 36V GT Taylor-Dunn

Chassis: Battery:
Type: Six 217 amp hr., 6 volt (lead acid) System Voltage: 36 Charger: Built-In
Chassis: Brakes:
Rear: Hydraulic discs Front: Optional Parking: Hand
Chassis: Frame Construction:
Steel unitized body with heavy duty 16 gauge diamond plate
Chassis: Powertrain:
Type: Electric Power: 110/220V, 50/60Hz Transmission: Transaxle Assembly, Sealed Helical Gear Primary Reduction to Hypoid Ring and Pinion Gears Drive: Controller: SEM
Chassis: Steering:
Manual, Re-circulating Ball
Chassis: Suspension:
Rear: Leaf springs, dual rear shocks Front: Leaf springs
Chassis: Tires:
Rear: 5.70 x 8 pneumatic Front: 5.70 x 8 Load Range C, Pneumatic
Dimensions: Deck:
Width: 41.25″ Length: 75.25″ Height: 25″ (63.5cm)
Dimensions: Height:
Less Cab: 45″ (114 cm) With Cab: 69″ (172 cm)
Dimensions: Hitch Height:
12.5″ (31.8cm)
Dimensions: Length:
121″ (307 cm)
Dimensions: Outside Turning Radius:
138″ (350.4cm)
Dimensions: Weight:
1,405 lbs (636 kg.)
Dimensions: Wheel Base:
55″ (139.8cm)
Dimensions: Width:
45″ (114 cm)
Interior: Instrumentation:
Smart View Display (Battery status indicator, hour meter, system status monitor, speedometer), reverse buzzer, forward/reverse selector, key switch, electric horn, DC/DC Converter
Interior: Seats:
Driver: Passenger:
Performance: Load Capacity:
3,000 lbs. (1,360 kg)
Performance: Passengers:
Performance: Range:
24 miles (38 km)
Performance: Speed:
11 mph (17.7 km/h)
Performance: Tow Capacity:
12,500 lbs. (5,682 kg)

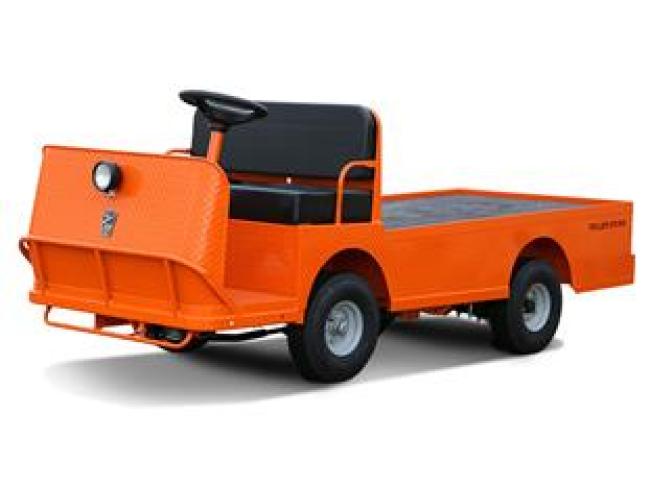

The B-248’s unique modular vehicle design allows it to be configured to provide precise solutions to your needs. The B-248 series, equipped with GT electric drive train, provides years of reliability with low operating costs.

The B-248 can be configured to carry up to 4,000 pounds of load, pull 17,500 pounds, or carry up to 10 people. Equipped with an automotive differential matched to a 36 volt drive train, the B-248 is one of the best values for your utility applications.

Equipment Type
Industrial Carts / Burden Carriers, Industrial Vehicles, Trucks & Trailers
