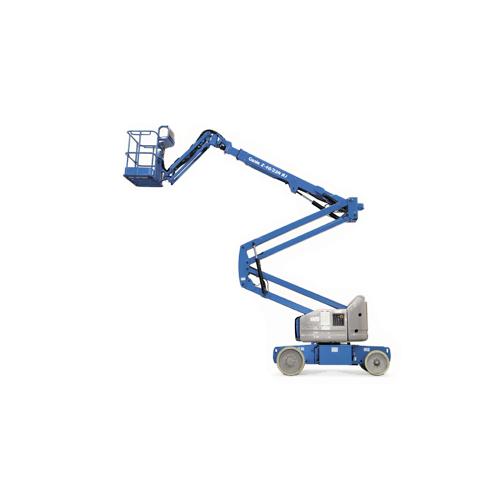

Z™-40/23 N & Z™-40/23 N RJ Genie
Working Height
46 ft 5 in (14.32 m)
Horizontal Reach
22 ft 8 in (6.91 m)
Up Over Clearance
21 ft 3 in (6.48 m)
Overview
- Perfect to work in congested area with 4 ft 11 in (1.50 m) wide chassis and 2 ft. 8 in. (87 cm) turning radius
- Proportional lift and drive controls for precise adjustments in tight areas
- Maximum drive performance of 30% gradeability and 4.0 mph travel speed
- Motor controller reduces complexity and improves reliability of the drive system
- The 34V three-phase AC drive system contain fewer parts and simplifies maintenance
- Self-leveling platform features 180° powered rotation for precise positioning and easy operation
- The RJ model features 180° horizontal jib rotation
- Easy ascent and descent along a vertical plane without retracting or extending the boom
- Automatic hill braking and ramp braking
Details
- Equipment Type
- Articulating / Aerial Lifts
