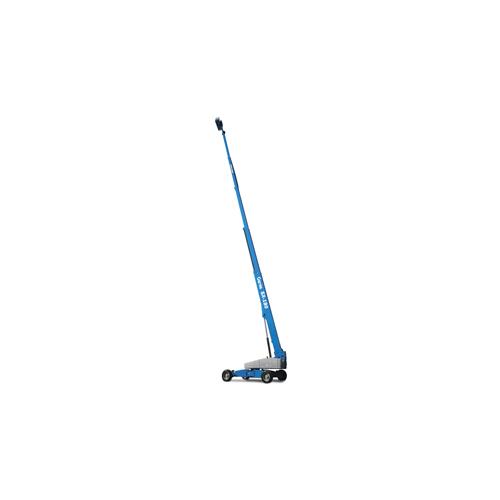

SX-180 Genie

Working Height

186 ft (56.69 m)

Horizontal Reach

80 ft (24.38 m)

Lift Capacity

750 lb (340 kg)

Overview



  • Designed to be productive, reliable and easy to transport
  • Features a working envelope ideal for the most extreme access jobs with a vertical reach of 180 ft (54.9 m) and horizontal reach of 80 ft (24.4 m)
  • 10 ft (3.05 m) rotating jib positions workers and gear exactly where they are needed
  • Standard 8 ft (2.44 m) self-leveling platform with an unrestricted capacity of 750 lb (340 kg)
  • Hydraulic platform rotation of 160°
  • Newly designed X-chassis extends and retracts to provide both stability on the job and a narrow profile for transport
  • Easily transported on a truck with no over width or over height permits required
  • Drive enable at full height
