SS-536 Taylor-Dunn

Chassis: Battery:
Type: Four 210 amp hr., 6 volt (lead acid) System Voltage: 24 Charger: Built-In
Chassis: Brakes:
Rear: mechanical drum Front: N/A Parking: Foot
Chassis: Frame Construction:
Steel unitized body, heavy duty 16 gauge diamond plate
Chassis: Powertrain:
Type: Electric Power: 110/220V, 50/60Hz Transmission: Transaxle Assembly, Sealed Helical Gear Reduction Drive: Controller: Series
Chassis: Steering:
Manual, Tiller, Front Fork
Chassis: Suspension:
Rear: Coil springs Front: Coil springs
Chassis: Tires:
Rear: 4.80 x 8 pneumatic Front: 4.80 x 8 Load Range B, Pneumatic
Dimensions: Deck:
Width: 30″ (76.2cm) Length: 19″ (48.3cm) Height: 24″ (60.96cm)
Dimensions: Height:
Less Cab: 41.5″ (105 cm) With Cab: N/A
Dimensions: Hitch Height:
Dimensions: Length:
86.5″ (219 cm)
Dimensions: Outside Turning Radius:
75″ (190.5cm)
Dimensions: Weight:
701 lbs. (309 kg.)
Dimensions: Wheel Base:
53.5″ (135.9cm)
Dimensions: Width:
30″ (76 cm)
Interior: Instrumentation:
Battery discharge indicator, forward/reverse selector, key switch, electric horn, DC/DC Converter
Interior: Seats:
Driver: Passenger:
Performance: Load Capacity:
600 lbs. (272 kg.)
Performance: Passengers:
Performance: Range:
20 miles (32 km)
Performance: Speed:
9 mph (14.4 km/h)
Performance: Tow Capacity:
2,000 lbs. (909 kg)

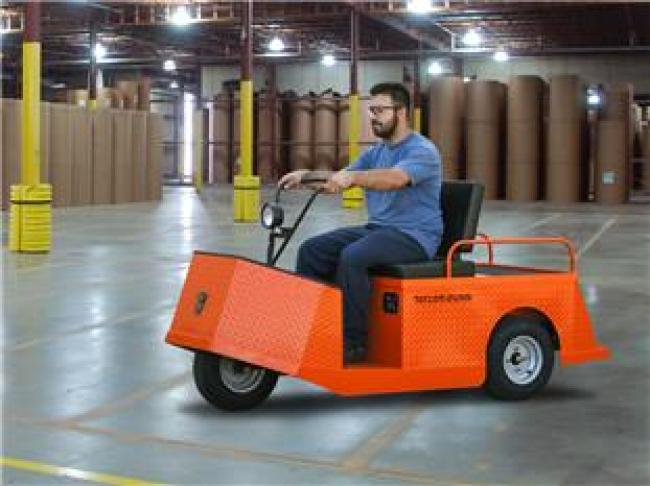

The versatile design of the Taylor Dunn SS-536 allows users to convert the vehicle from personnel carrier to burden carrier in a matter of seconds. This vehicle can carry up to two people or 600 lbs. of load on the job site.

With its three wheel short turning radius design, The SS-536 can maneuver dependably around warehouses, industrial complexes, resorts, hotels, shopping malls, hospitals and other commercial complexes.

Its all welded steel unitized body and frame is built to last for years of use. Modularized control system design provides ease of maintenance on all electrical systems.  Tiller loop steering, 10 mph speed, and on-board charger provide safety, efficiency and convenience during daily operation.

Equipment Type
Industrial Carts / Personnel Carriers, Scooters & Carts
